Complete Dredge Pulley Setup Guide: Deploy Heavy Dredges with Mechanical Advantage

Modern dredge fishing systems have revolutionized offshore billfish trolling, but deploying 15+ pound natural bait dredges requires sophisticated mechanical advantage to prevent tackle failure and crew injury. Professional tournament anglers rely on precisely engineered pulley configurations that reduce effective drag loads by 50-75% while maintaining precise dredge control during critical fish encounters.

The physics behind effective dredge pulley systems centers on distributing hydrodynamic forces across multiple mechanical components rather than overwhelming single-point attachments. When a 40-pound dredge encounters 8-knot trolling speeds, water resistance can generate over 100 pounds of sustained pull - forces that would destroy standard fishing tackle within minutes of deployment.

Understanding Dredge Pulley Mechanics

Why Standard Tackle Fails with Heavy Dredges

Tournament-quality natural bait dredges create exponentially higher drag forces compared to traditional trolling lures due to their substantial underwater profile and multiple bait presentations. A fully rigged mullet dredge with 30+ baits presents roughly 400 square inches of water resistance, compared to 15-20 square inches for conventional lures.

The mathematical relationship between drag force and trolling speed follows exponential curves, meaning small speed increases create dramatic load multiplication:

  • 6-knot trolling speed: 45-60 pounds sustained drag force
  • 8-knot trolling speed: 80-120 pounds sustained drag force
  • 10-knot trolling speed: 140-200+ pounds sustained drag force

Standard outrigger systems experience catastrophic failure when direct-connected to heavy dredges because single mounting points cannot distribute these extreme loads. Rod holders crack, outrigger poles bend, and electric reels burn out motors attempting to retrieve dredges against water resistance without mechanical assistance.

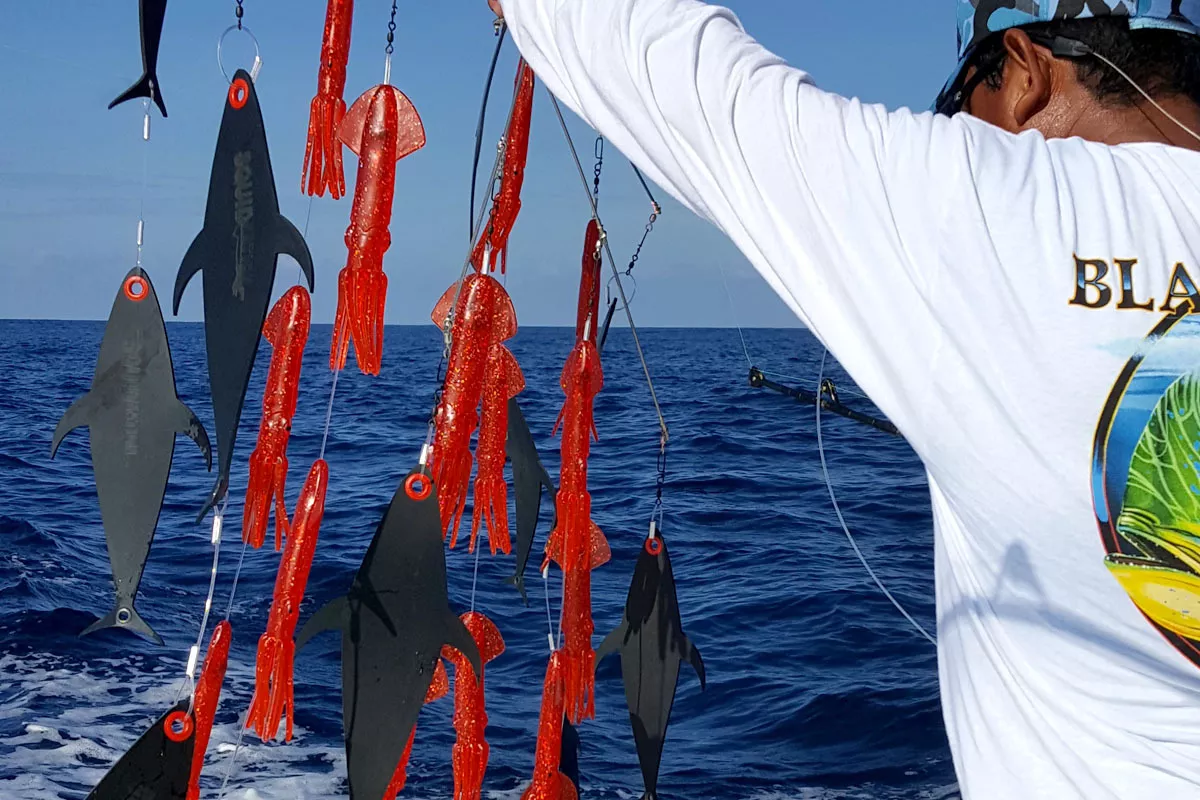

Dredge Fishing for Billfish

Mechanical Advantage Principles for Offshore Fishing

Pulley system configurations provide mechanical advantage by redistributing load forces across multiple lines and attachment points. The most effective recreational dredge systems employ 2:1 mechanical advantage ratios, reducing perceived load by approximately 45-48% in real-world conditions when accounting for friction losses through pulleys and line contact points.

A properly configured 2:1 system routes line from the electric reel through a primary pulley mounted on the outrigger, down to a secondary pulley attached directly to the dredge, then back up to a fixed attachment point on the outrigger structure. This configuration transforms a 100-pound dredge load into a manageable 50-55 pound pulling force on the reel system, though actual efficiency typically ranges 85-95% depending on component quality and maintenance.

Friction considerations in real-world applications reduce theoretical mechanical advantage due to bearing resistance and line contact surfaces. High-quality ball bearing pulleys experience 2-5% friction losses per pulley, while standard bearing systems lose 5-10% per pulley. Combined with line friction over pulley surfaces, total system efficiency requires quality components and proper maintenance for optimal performance.

Advanced 3:1 and 4:1 configurations provide greater mechanical advantage for extreme-duty applications but require significantly more complex rigging and increased line capacity. Most recreational applications find 2:1 systems provide optimal balance between load reduction and operational simplicity.




Essential Equipment and Hardware Selection

Professional-Grade Pulley Components

Marine-grade pulleys represent the foundation of reliable dredge systems, requiring corrosion-resistant construction and bearing systems capable of handling sustained loads under saltwater conditions. Tournament applications demand pulleys rated for working loads exceeding 880 pounds to provide adequate safety margins according to manufacturer specifications and industry standards.

Ronstan Series 20 through Series 75 pulleys offer hard anodized aluminum construction with stainless steel bearings, providing working load capacities from 440 pounds through 3,300 pounds depending on size requirements:

  • Ronstan Series 20: 440-pound working load, ideal for artificial dredges and smaller boats
  • Ronstan Series 40: 880-pound working load, standard for most natural bait applications
  • Ronstan Series 55: 1,540-pound working load, heavy-duty tournament configurations
  • Ronstan Series 75: 3,300-pound working load, commercial-grade applications

Harken Carbo Air blocks provide lightweight composite alternatives particularly suited to smaller vessels where weight distribution affects performance. These units handle 880-3,500 pound working loads while reducing overall system weight by 40-60% compared to aluminum equivalents.

Modern pulley innovations include braid-proof designs from manufacturers like Rupp Marine, featuring specialized sheave profiles that prevent high-tech braided lines from wedging between pulley wheels and side plates - a common failure mode when using advanced synthetic lines.

lindgren pitman S-1200 dredge reel used to pull sailfish dredges

Electric Reel Integration and Power Requirements

Electric dredge reels form the backbone of professional dredge operations, providing consistent retrieval power and precise positioning control essential for effective fish management. Lindgren Pitman reels set industry standards through five decades of offshore fishing innovation, with specifications verified by manufacturer documentation.


The S-1200 series handles standard recreational applications with 12-volt operation and 400-pound maximum drag, suitable for artificial dredges and light natural bait presentations. SV-2400 models provide high-speed 24-volt operation essential for tournament fishing, featuring 1,200-pound maximum drag and auto-stop positioning capabilities.

Key electrical considerations for dredge reel installations include:

  • 12-volt systems: Adequate for dredges under 25 pounds, compatible with standard marine electrical
  • 24-volt systems: Required for heavy natural bait dredges, demanding dedicated electrical circuits
  • Amperage requirements: 15-25 amps continuous draw during retrieval operations
  • Circuit protection: 30-40 amp breakers with marine-grade wiring throughout

Line Selection and Advanced Materials

Heavy-duty fishing line for dredge applications traditionally uses 400-500 pound test monofilament with UV-resistant formulations to withstand extended sun exposure during long fishing days. Momoi Diamond and Ande brands offer proven durability in demanding offshore environments.

Modern synthetic alternatives increasingly feature high-tech braided lines using Dyneema or Spectra fibers that provide superior strength-to-diameter ratios and reduced stretch characteristics. These materials offer several advantages:

  • Hollow core Dyneema: Enables clean splicing while providing 30% greater strength than equivalent monofilament
  • Reduced stretch properties: Improves dredge control responsiveness during fish encounters
  • UV resistance: Advanced coatings extend service life beyond traditional monofilament
  • Diameter advantages: Smaller profile reduces wind resistance and improves handling

Critical rigging components include heavy-duty swivels rated for dredge loads, with Tournament Cable TC-316 series representing industry standards. These swivels feature 316-grade stainless steel construction and sealed bearing systems preventing saltwater intrusion:

  • Corkscrew swivel connections: Prevent line twist during high-speed trolling
  • Ball bearing snap swivels: Enable quick dredge changes between fishing locations
  • Heavy-duty split rings: 200+ pound test ratings for secure lure attachments
  • Soft shackles using Dyneema: Lighter weight alternatives to metal hardware with superior corrosion resistance

Step-by-Step Installation Guide

Basic 2:1 System Configuration

Outrigger mounting requirements form the foundation of safe dredge pulley installations, demanding reinforced attachment points capable of handling distributed loads without structural failure. Industry standards require minimum 1-inch diameter back bars for recreational applications, while heavy-duty tournament setups benefit from 1⅜-inch or larger diameter components.

The installation sequence begins with mounting the primary pulley to the outrigger tip using heavy-duty marine hardware rated for expected loads. This pulley should rotate freely without binding while maintaining secure attachment under maximum expected loads. Secondary pulley attachment to the dredge requires swivel connections enabling natural movement during trolling operations.

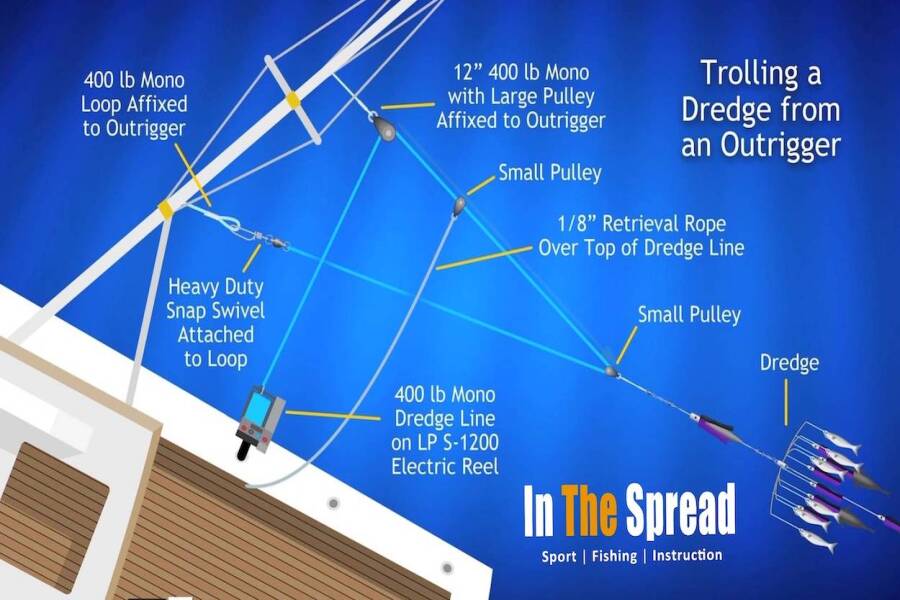

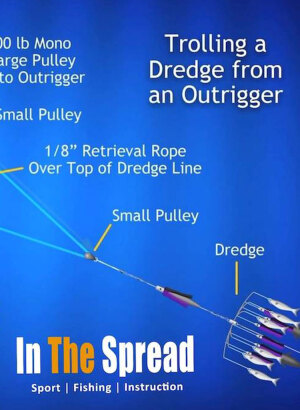

Line routing diagram follows this specific pattern to achieve proper mechanical advantage:

  1. Attach line to fixed point on outrigger structure (typically outrigger base or reinforced mounting)
  2. Route line down through dredge-mounted pulley
  3. Bring line back up through outrigger-mounted pulley
  4. Connect to electric reel

This configuration ensures the reel pulls against approximately half the actual dredge load, accounting for friction losses in real-world conditions.

Initial system testing should occur in calm conditions with gradually increasing loads to verify proper operation before deploying in fishing situations. Check all attachment points for secure connections and verify smooth pulley operation throughout the full range of motion.

Dredge Fishing for Sailfish

Advanced A-Frame Configurations

A-frame pulley systems provide superior load distribution and enhanced dredge control for serious tournament applications. These configurations mount dual pulleys on triangulated frames attached to outrigger bases, distributing stress across multiple attachment points while eliminating dangerous single-point loading.

Installation complexity increases significantly with A-frame systems, requiring precise measurement and professional-grade mounting hardware. The triangulated structure must maintain proper geometry under load while providing sufficient clearance for line movement during retrieval operations.

Benefits of A-frame configurations include:

  • Enhanced load distribution: Spreads forces across multiple mounting points
  • Improved dredge control: Enables precise positioning during fish encounters
  • Reduced outrigger stress: Eliminates bending moments on outrigger poles
  • Multiple dredge capability: Supports dual dredge deployments from single stations

Small Boat Rigging Considerations

Vessels under 28 feet face unique challenges when implementing dredge pulley systems due to weight distribution, stability, and space limitations. These installations require careful planning to maintain boat performance and crew safety.

Critical considerations for small boat dredge systems include:

  • Weight distribution impact: Heavy electric reels affect vessel trim and handling characteristics
  • Stability margins: Large dredges can create dangerous list conditions in rough weather
  • Manual backup systems: Essential when electrical failures occur far from assistance
  • Simplified rigging: Single dredge deployments with basic 2:1 configurations work best
  • Portable installations: Removable systems enable multi-purpose vessel use

Emergency procedures become more critical on smaller vessels where crew movement is restricted and equipment access may be limited during rough conditions. Manual winch systems provide essential backup capability when electrical systems fail offshore.

Deployment and Retrieval Techniques

Pre-Fishing Setup and Safety Protocols

Dredge deployment procedures require systematic preparation to ensure safe and effective operation throughout fishing days. Begin with thorough equipment inspection including pulley bearing operation, line condition assessment, and electrical system verification.

Safety equipment must include personal flotation devices for all crew members, as dredge operations present elevated man-overboard risks due to deck line configurations and sudden equipment movements. Non-slip deck surfaces become critical when handling wet lines and deploying heavy dredges in offshore conditions.

Pre-fishing checklist items include:

  • Line capacity calculations: Verify sufficient line for intended fishing depths and drift patterns
  • Electrical system testing: Confirm reel operation and circuit breaker functionality
  • Pulley lubrication: Apply marine-grade lubricants to bearing systems
  • Emergency procedures review: Brief crew on rapid retrieval and man-overboard protocols
  • Weather assessment: Evaluate conditions for safe dredge handling throughout fishing day

Effective Fish Encounter Management

Billfish dredge fishing success depends on precise dredge manipulation during fish encounters rather than simple deployment and retrieval. When fish appear in the spread, maintaining dredge position becomes critical for successful switch-offs to hooked baits.

The key technique involves using electric reel controls to manipulate dredge depth and position without removing the teaser from the water. Drop the dredge deeper to draw fish closer to the boat, then raise it slightly to maintain visual contact while presenting hooked baits in the optimal strike zone.

Professional tournament anglers emphasize the importance of patience during fish encounters. Rapid dredge retrieval often spooks billfish, while maintaining steady dredge position allows predators to investigate thoroughly before switching to presented baits. Electric reel variable speed controls enable precise positioning adjustments throughout extended fish encounters.

Troubleshooting Common Problems and Maintenance

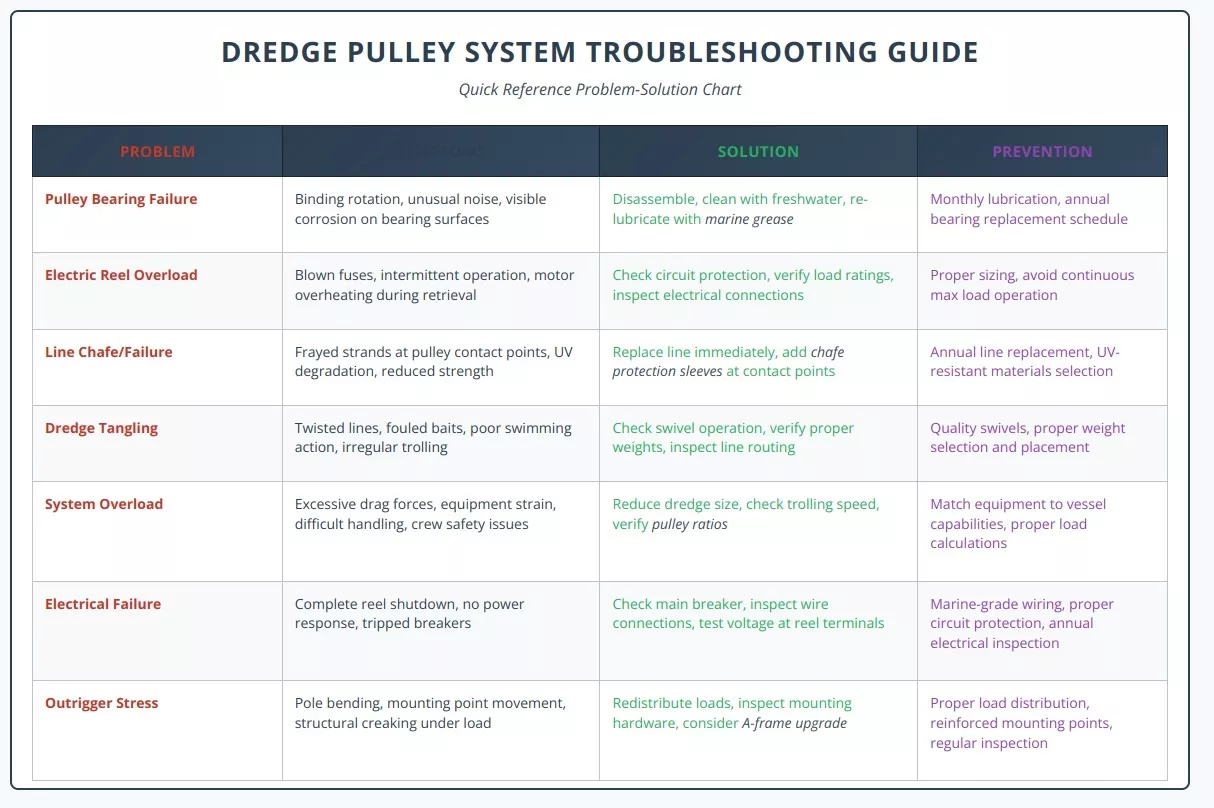

Quick Reference Problem-Solution Guide

Quick Reference Problem-Solution Guide to dredge pulley setup

Equipment Failures and Field Solutions

Pulley bearing failures represent the most common mechanical problem in dredge fishing systems, typically caused by saltwater intrusion or inadequate lubrication during extended use. Symptoms include binding rotation, unusual noise during operation, and visible corrosion on bearing surfaces.

Field replacement procedures require basic tools and spare components readily available from marine supply sources. Remove the pulley from its mounting point, disassemble the bearing assembly, clean components with freshwater, apply marine-grade lubricants, and reassemble with proper torque specifications.

Electric reel troubleshooting focuses on electrical connections and motor operation under load conditions. Common issues include blown fuses due to overloading, corroded connections causing intermittent operation, and motor overheating during extended retrieval operations in rough conditions.

Prevention strategies include regular electrical connection inspection, proper circuit protection sizing, and avoiding continuous operation at maximum load capacity. Most electric reel failures stem from operator error rather than equipment defects, particularly overloading systems beyond design specifications.

Performance Optimization and Seasonal Maintenance

System friction reduction significantly improves dredge handling efficiency and extends equipment lifespan through proper maintenance protocols. Ball bearing pulleys require periodic lubrication with marine-grade grease specifically formulated for saltwater applications.

Seasonal preparation includes thorough freshwater rinsing of all components, bearing lubrication, line inspection and replacement, and electrical system testing under simulated load conditions. Replace lines showing signs of UV degradation or chafe damage before fishing seasons to prevent failure during critical fish encounters.

Long-term performance optimization requires:

  • Monthly bearing lubrication: Marine-grade grease application to all rotating components
  • Quarterly line inspection: UV damage assessment and chafe point examination
  • Annual electrical service: Connection cleaning and motor brush inspection
  • Biannual load testing: Full system testing under maximum expected loads
  • Component replacement schedule: Pulleys every 2-3 seasons, lines annually, swivels every 18 months

Equipment Sizing and Budget Considerations

Matching Systems to Vessel Capabilities

Small boat dredge systems under 30 feet accommodate single dredge deployments using simplified pulley configurations and manual backup retrieval capabilities. These installations typically feature basic 2:1 systems with 12-volt electric reels suitable for artificial dredges and light natural bait presentations.

Weight distribution becomes critical on smaller vessels where heavy electric reels and deployment hardware can affect stability and handling characteristics. Portable systems enable multi-purpose vessel use while providing essential dredge fishing capability for serious anglers.

Medium sportfishers between 30-50 feet represent the optimal platform for serious recreational dredge fishing, offering dual dredge capability with electric reel systems and proper outrigger infrastructure. These vessels typically support 24-volt electrical systems enabling heavy-duty natural bait dredge operations.

Large sportfishers exceeding 50 feet enable multiple dredge spreads with sophisticated A-frame configurations and high-speed electric reel systems. Bridge control installations allow captain-operated dredge management while maintaining precise trolling patterns essential for tournament fishing success.

Budget allocation guidelines for complete dredge pulley systems:

  • Entry-level systems ($800-1,500): Basic artificial dredges with manual backup retrieval
  • Mid-range installations ($2,500-5,000): Electric reels with 2:1 pulley systems for natural baits
  • Tournament-grade setups ($8,000-15,000): Dual electric reels with A-frame configurations
  • Professional systems ($15,000+): Multiple dredge capability with bridge controls




Visual Learning Resources and Professional Instruction

Instructional videos provide invaluable assistance for understanding complex rigging procedures that are difficult to convey through text alone. Recommended resources include manufacturer installation guides from Lindgren Pitman, Rupp Marine technical videos, and professional instruction from tournament captains.

The In The Spread educational fishing platform offers comprehensive dredge fishing instruction featuring industry experts like Bill Pino of Squidnation and others, demonstrating proper pulley setup procedures and fish encounter management techniques. Visual learners particularly benefit from seeing pulley line routing and mechanical advantage principles in operation.

How much weight can a 2:1 pulley system handle?

A properly configured 2:1 pulley system using marine-grade components can handle dredges weighing 60-80 pounds in water, reducing the effective load on electric reels to manageable 30-40 pound levels when accounting for real-world friction losses.

What size electric reel do I need for dredge fishing?

Artificial dredges work well with 12-volt systems like the Lindgren Pitman S-1200, while natural bait dredges require 24-volt high-speed systems such as the SV-2400 for adequate retrieval power under load.

Can I install a dredge pulley system on a small boat?

Boats under 28 feet can accommodate basic dredge systems using simplified pulley configurations, though weight distribution, stability considerations, and manual backup systems become more critical compared to larger vessels.

How often should I replace dredge pulley components?

Ball bearing pulleys typically require replacement every 2-3 seasons with heavy use, while lines need annual replacement due to UV degradation and chafe damage from pulley contact. Swivels should be replaced every 18 months.

What's the difference between stainless and titanium pulleys?

Titanium pulleys offer 40% weight reduction and superior corrosion resistance but cost 300-400% more than stainless steel alternatives, making them practical only for weight-critical applications or when durability justifies the investment.

Should I use monofilament or braided line for dredge systems?

Modern Dyneema braided lines offer superior strength-to-diameter ratios and reduced stretch, but require compatible braid-proof pulleys. Traditional monofilament remains reliable and cost-effective for most applications.

Mastering Your Dredge Pulley Setup

Successful dredge pulley system deployment transforms offshore trolling from basic lure presentation into sophisticated predator attraction capable of raising fish from depths exceeding 200 feet. The mechanical advantage provided by properly configured pulley systems enables recreational anglers to deploy tournament-quality natural bait dredges previously restricted to commercial fishing operations.

The progression from basic artificial dredge setups to advanced natural bait systems requires understanding mechanical principles, investing in quality marine hardware, and developing boat handling skills specific to dredge fishing techniques. Most importantly, safety protocols and equipment maintenance prevent the dangerous situations that can develop when handling heavy loads in offshore environments.

Real-world efficiency considerations mean that theoretical mechanical advantage must account for friction losses, component quality, and maintenance standards. Quality components and proper installation typically achieve 85-95% of theoretical performance, making the investment in marine-grade hardware essential for reliable operation.

For anglers serious about maximizing their billfish encounter rates, mechanical advantage dredge systems represent essential equipment rather than optional upgrades. The initial investment in quality pulleys, electric reels, and proper installation pays dividends through dramatically increased fish contact rates and the unmatched excitement of watching billfish respond to properly presented dredge spreads.

The next step involves selecting specific equipment matched to your vessel size and fishing objectives, followed by hands-on installation and testing in controlled conditions before committing to serious offshore fishing scenarios. Consider professional instruction or manufacturer consultation for complex installations, particularly on smaller vessels where safety margins are reduced. Success with dredge pulley systems requires patience, practice, and respect for the substantial forces involved in deploying heavy teasers in demanding offshore environments.
